High Speed Automatic Tissue Paper Box Cartoning Sealing Closing Duplex Packing Machine

High Speed Automatic Tissue Paper Box Cartoning Sealing Closing Duplex Packing Machine

Duplex Packing Machine 80box/min High Speed Automatic Tissue Paper Box Packing Cartoning Sealing Closing


  • Product No.: FBP-80

Details

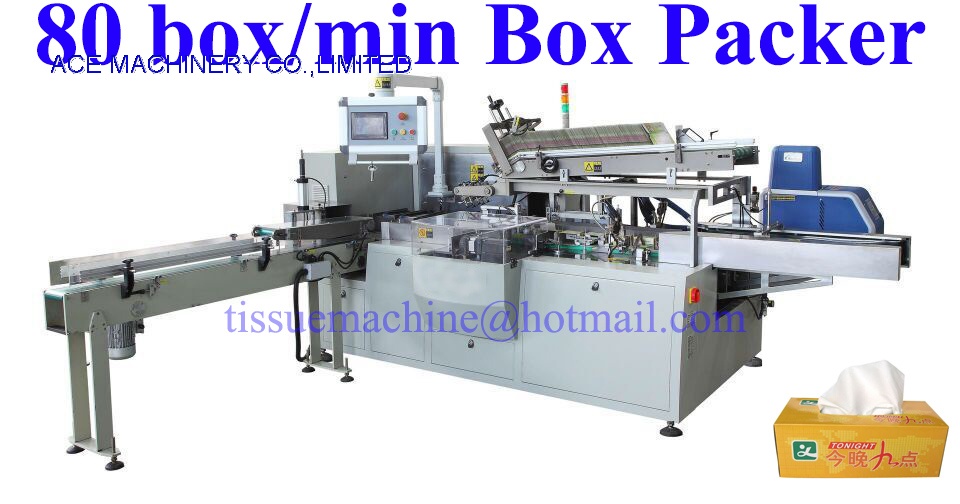

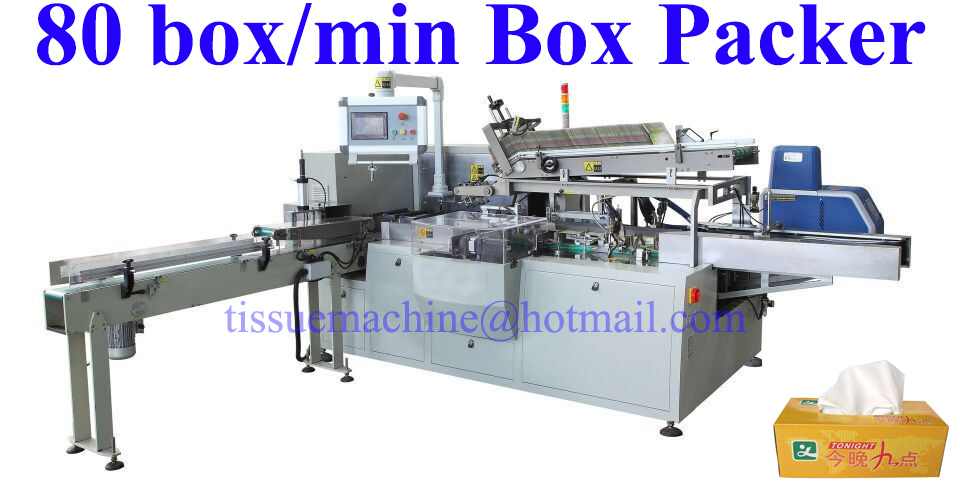

FBP-80 80box/min High Speed Automatic Tissue Paper Box Packing Cartoning Sealing Closing Machine

Features

1High capacity output. The stable speed can reach 80 boxes/minute.

2Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.

3Rapid production changing. It takes only about 20 minutes to change the specifications.

4Convenient operation. It is easy to control the servo paper feeding and PLC control system.

5Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.



Main performances and structure features:

1.      Automatic feeding, box opening, batch No. printing, glue spreading, box sealing, etc. all-in-one. Featured by compact and reasonable structure, simple operation and adjustment.

2.      Servo/step motor, touch screen, PLC controls system and human-machine interface display make operation more convenient. With high automation degree, the machine is more user-friendly.

3.      The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.

4.      The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.

5.      With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.

6.      Change of specifications does not need change of molds, but can be realized through adjustment.

7.      Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.

8.      According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.

Technical parameters

纸质要求Paper quality of carton: 300-400g/m3

最大包装规格Maximum packing specification: L240mm×W120mm×H100mm

最大包装规格Minimum packing specification: L110mm×W110mm×H30mm

包装速度Packing speed: 40-80 boxes/min

电源类型Power supply type: 3phase 4wire 380V 50Hz.

热熔胶机功率Hot melt machine power      2.32KW

电机功率Motor power    2.74KW

总功率Total power   5.1KW

电源类型Power supply type  三相四线(3phase 4wire 380V 50Hz or customized.

机器噪音Machine noise  80dB

气源Air supply  0.5-0.8 Mpa

耗气量Air consumption  120-160L/min

Machine dimension       主机Main machine       L3250×W1650×H1800mm

输送机构Conveying mechanism L2000mm×W180mm×H850mm

整机重量Machine weight      1500Kg



Electrical components

PLC   Japan Panasonic

Touch screen Japan OMRON

Inverter: Japan Panasonic

Servo motor: Taiwan DELTA

Autonics编码器600线

Low-current electrical: French SCHNEIDER

Glue Spray Gun: American NORDSON.
