High Speed Automatic Facial Tissue Paper Box Packing Cartoning Sealing Gluing Machine

High Speed Automatic Facial Tissue Paper Box Packing Cartoning Sealing Gluing Machine

facial tissue box packing machine,box closing machine,tissue paper box sealing machine,fully automatic facial tissue box packing machine


  • Product No.: FBP-40

Details

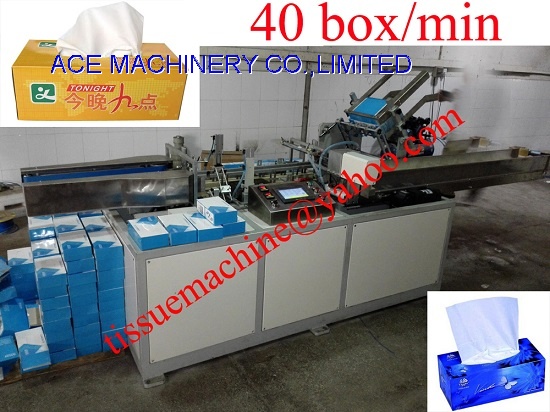

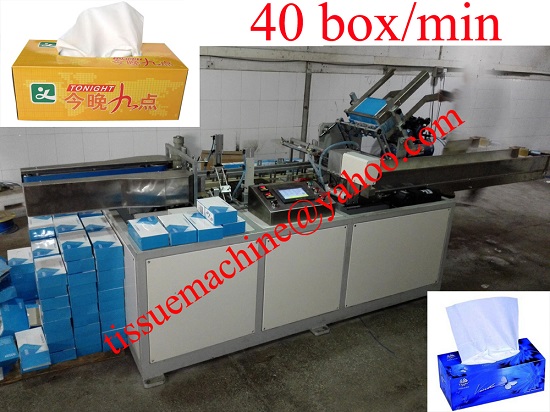

FBP-40  40Box/Min Facial Tissue Paper Box Packing Machine High Speed Automatic Cartoning Sealing Gluing.

1.      Packing speed: 40 pack/min.

2.      Box size:  L: 210-240mm     other sizes, please specify.

                  W: 100-120mm

                  H: 50-110mm

3.      Box specification: 350-400gsm box paper

4.      Easy adjusting for changing different box sizes.

5.      Can be connected to the log saw to form a complete automatic line.

6.      Using hot melt glue; automatic touching glue.

7.      Time and air pressure time can be adjusted

8.      PLC control system, touch screen for setting parameters. Famous brand PLC and touch screen.

9.      With Servo motor control

10.  Vacuum suction for feeding and open the boxes.

11.  Flat conveyor belt for feeding the tissues.

12.  Advanced pneumatic driving parts.

13.  Power: about 5kw, 3phases 380v 50hz.

14.  Pressure: 0.5MPa

15.  Machine size: about 3700x1300x1700mm

16.  Weight: about 1200KG
