China 20 years’ experience professional manufacturer of Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing by ACE MACHINERY CO., LIMITED can be lamination, printing, full embossing,edge embossing.


  • Product No.: VTM-L-2C

Details

Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing

Below are technical parameters of our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing


Model:

VTM-L-2C  Interfold Dispenser Napkin Machine with Lamination and 2 Colors Printing.



Output:

8Lanes output delivery.  Other capacity like 3Lanes, 6Lanes, up to 15lanes are available.



Capacity:

--900-1000 sheet/min/lane x 8 lanes, if embossing.

--600-900 sheet/min/lane x 8 lanes, if laminating.

--500-800 sheet/min/lane x 8 lanes, if lamination & printing running together.

--depending on paper quality and workers' operation etc..



Machine used for:

--Production of interfold dispenser napkin, interfold singlefol hand towels, pop up tissue, pop up bathroom tissue, facial tissue etc. All produced by One machine.

--With embossing, lamination and up to 2 colors printing. All in one.



Raw material:

--12-85gsm 2-ply or 1-ply white virgin tissue, recycled kraft paper, bamboo paper or Nonwoven etc.



Jumbo roll size:

--1400mm width x 1500 mm diameter. Other sizes available.

--Width can be up to 3500mm.



Interfold Napkin size:

--200±2mm x 165mm(folded size 100±2mm x 165mm).

--210±2mm x 165mm(folded size 105±2mm x 165mm).

--225±2mm x 165mm(folded size 112.5±2mm x 165mm).

--Other size 190x190mm, 210x210mm, 230x250mm available.



Folding Type: V fold/Interfold/vacuum fold.  Other folding N/Z/W/M/C folds available.



Folding and Cutting Section:

--Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration.

--With automatic left-right stagger counting system, each stack of 50sheets, 100sheets, 200sheets etc. adjustable.

--With variable speed hand wheels to control web tension.

--With slitting blades on the top of the machine to cut the tissues, sizes adjusted flexibly.

--With Static Eliminator to prevent static from tissue paper tansferring to machine and operator.



Full Embossing Section:

--With 2 set of steel-to-rubber embossing rollers(Pattern provided by client)

--Embossing units installed in a complete Thickened Floor-standing wallboard structure(Full steel plate), to ensure high speed running NO vibration.

--Controlled by NEW design level-type pneumatic system copied Italy technology, not traditional old design controlled by screws or direct-pressing cylinders.



Edge embossing Section: Optional NEW design copied Italy technology.



Printing Section:

--With single color(2 sets) flexo-graphic printer section. 2, 3, 4 colors optional.

--Printing unit with driven by timing belts to make printing more precise.

--Between printing color to color location which will accept ±1-2 mm tolerance.

--With New Register device, Register adjustment color to color position will use 360° rotation speed modulators device which is easy to adjust.

--Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.



Lamination System  :

--With point-to-point lamination system or nested-to-nested lamination system.

--The whole design is copied Italy design.

--Crown on the embossing rolls. Heavy chrome coating roll

--Micro-adjustment of nips between the steel roll

--Anilox roll for glue applicant.

--Controlled by cylinders

--Each lamination unit controlled by an independent speed-reducing motor.

--When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.



Unwind stand:

--With 2 unwind stands, controlled pneumatic cylinders, with feeding belts.

--With pneumatic system to load the jumbo rolls automatically.

--With paper web tension control systems to adept the machine to jumbo rolls of different quality and gsm.

--Equipped with hand wheel or independent motor to adjust the jumbo roll to the left/right.

--Equipped with sensors to dectect the jumbo roll, if finished, machine will automatically alarm and stop.

--Auto Web tension control system is optional.

--Auto edge guiding system is optional.

Control system:

--Main motor controlled by inverter, international brands from Taiwan, Japan, Germany etc.

--Frequency speed control

--With JOG devices (step by step for passage and adjusting paper).

--Emergency stop if paper breaks or finished.

--Start machine with alarm beeper.

--Air pressure:0.5Mpa(buyer supply)

--Installed Power   About 11KW main motor, 18.5KW vacuum pump

--3-phase AC380V 50HZ or 3-phase 220V 60Hz, or customized.

--Machine Size       10000x2500x2100mm

--Weight   10000KG



Contact details:

Mobile No.,/WhatsApp/Wechat: 0086 18775368277

Email:  sales@acetissue.com

            tissuemachine@hotmail.com

            tissuemachine@yahoo.com

Skype: tissuemachine



Below are more details of our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing

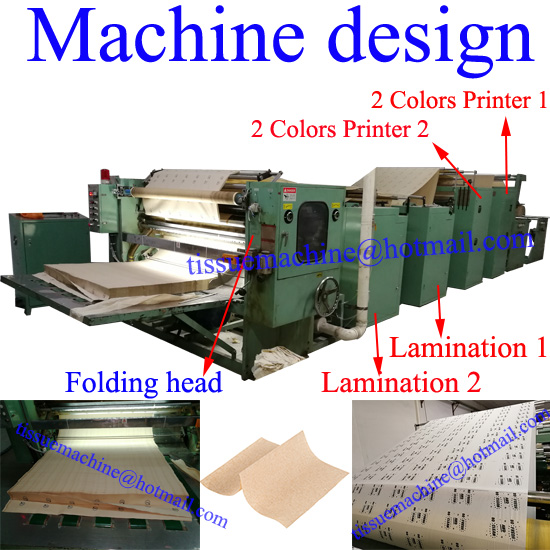

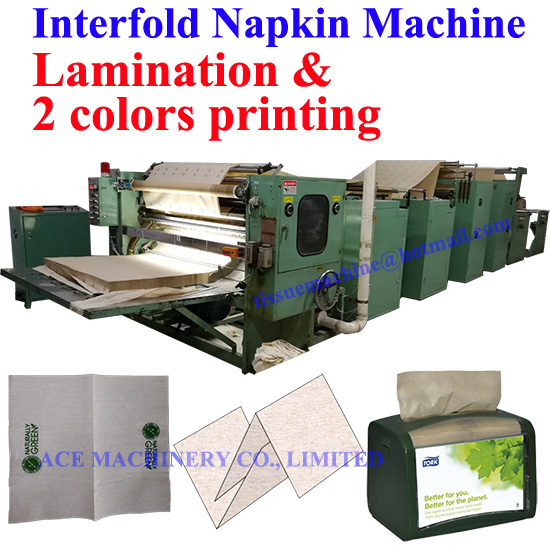

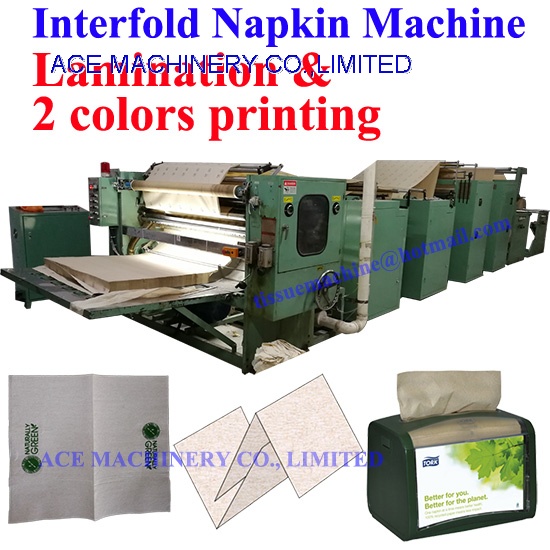

Overall view  Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing incuding unwind section, printer section, embosser section, folding section and output delivery plate etc..

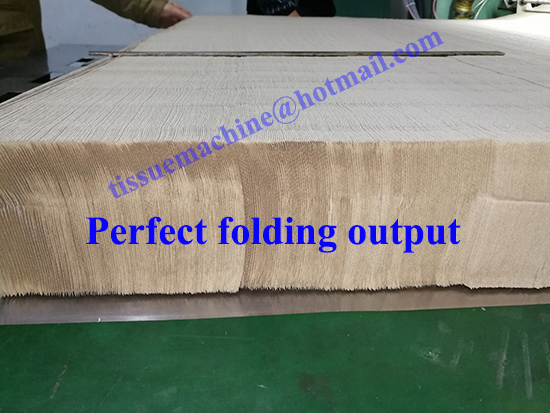

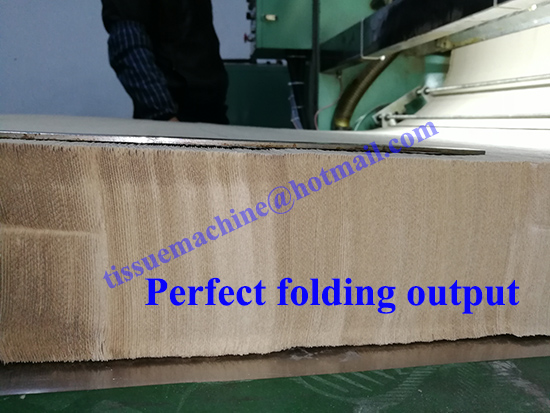

Perfect output of Our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing

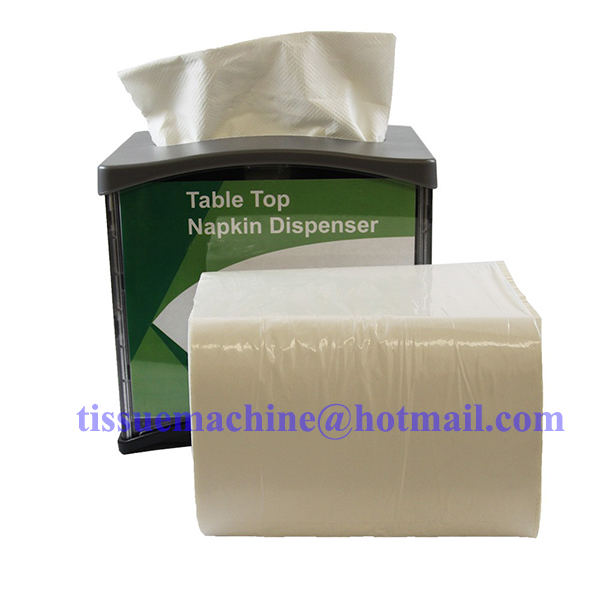

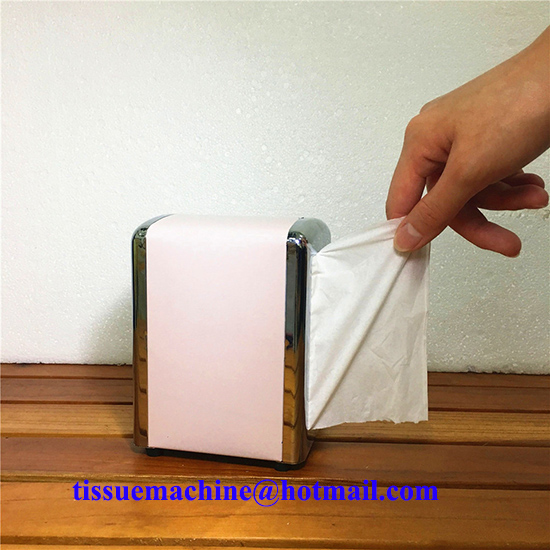

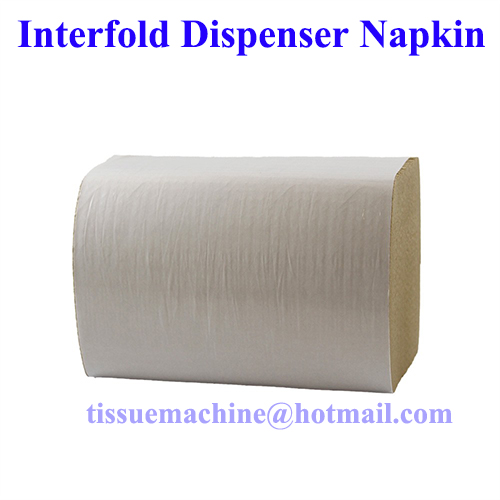

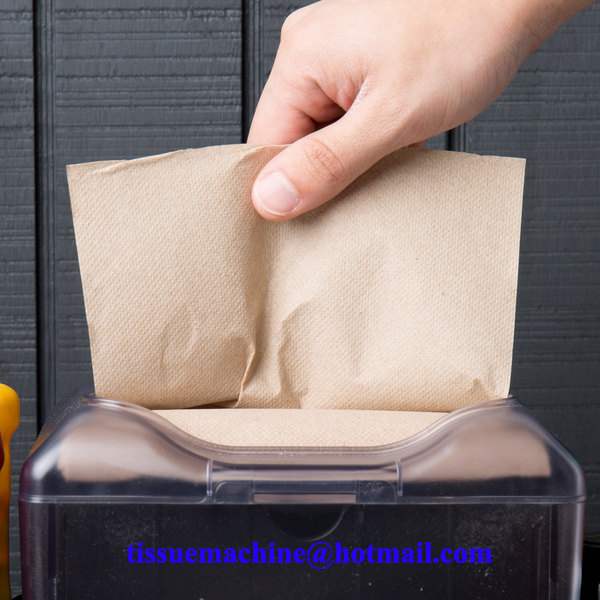

Final output lamianted printed interfolded napkins of our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing





Other companies printers VS our advanced Printers copied Italy technology of Our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing





Other companies Weak Separate Embosser VS our Strong Independent Embosser of our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing





Our Strong Steel or Metals VS other companies Weak Plastic & PVC. Below is comparison of our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing






Other companies inferier brand Air Blower VS Taiwan Vacuum Pump of our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing






Color Printed Tissues made by our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing






Output with Color Printed made by our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing





Printed Facial Tissues made by our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing







Embossed tissues is very Bulky made by our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing

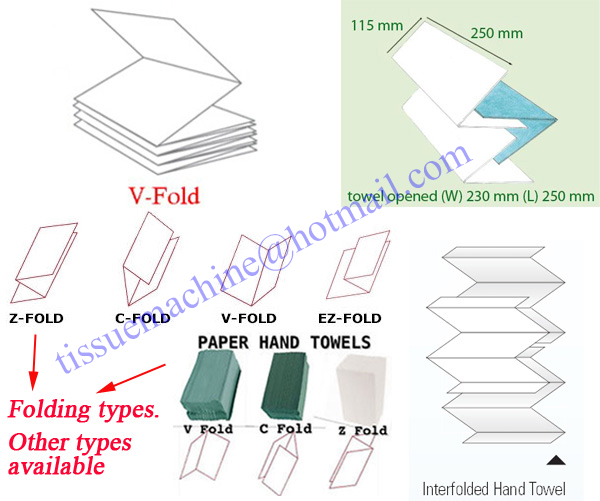

Folding Types made by our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing







Boxed facial tissues made by our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing







Soft plastic packed facial tissues made by our Interfold Dispenser Napkin Machine with Lamination and 2 colors Printing
