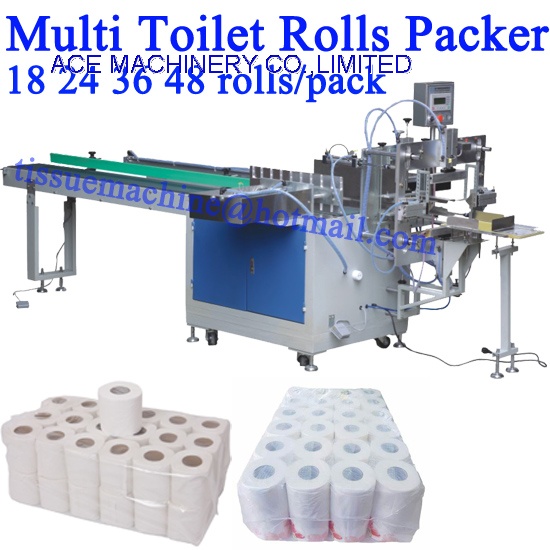

2 Layers 18 24 36 48 Rolls per pack Multi Toilet Roll Bundle Packing Wrapping Machine

STW-2L  2 Layers 18 24 36 48 Rolls per pack Multi Toilet Roll Bundle Packing Wrapping Machine

1.       For double layers core to core packing format.

2.       Packing Speed: 6-12 pack/min

3.       Allowable packing size: Roll diameter: 90-130mm.   (Other sizes please specify.)

    Roll height:     90-130mm.

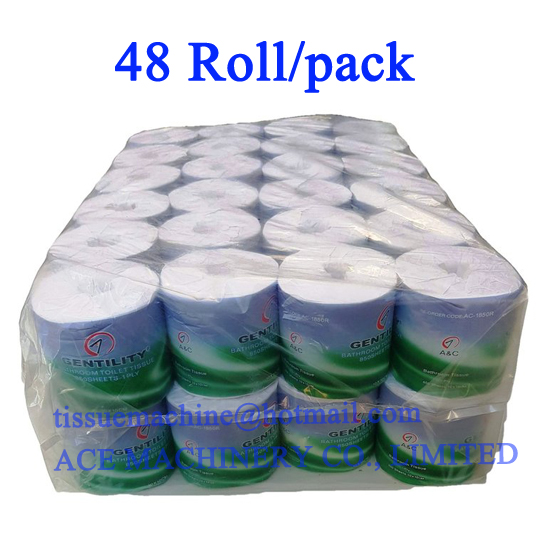

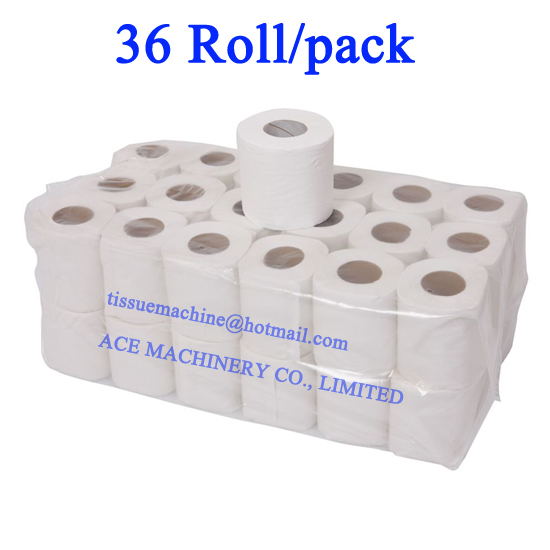

4.       Packing format: 2-6 roll/row x 2 or 3 or 4 rows x 2 layers = 18, 24, 36 or 48 rolls/pack.

5.       With single lanes packing heads.

6.       With 1 piece of 3 meters double lanes infeed conveyor to connect to the double tissue cutting machine.

7.       Automatic conveying tissue rolls, feeding rolls into the bag and then sealing the bag.

8.       Only one workers needed to feed the bags.

9.       With PLC control.

10.    Perfect sealing and packing.

11.    Can be connected with log saw or band saw to make a complete automatic production line.

12.    Power: 0.4 KW+0.8KW.  220V, 50 HZ or customized.

13.    Air Pressure: 0.8MPA (Provided by the Buyer.)

14.    Machine size: 5000*2000*1380 mm.

Below video for your reference.


Below pictures
