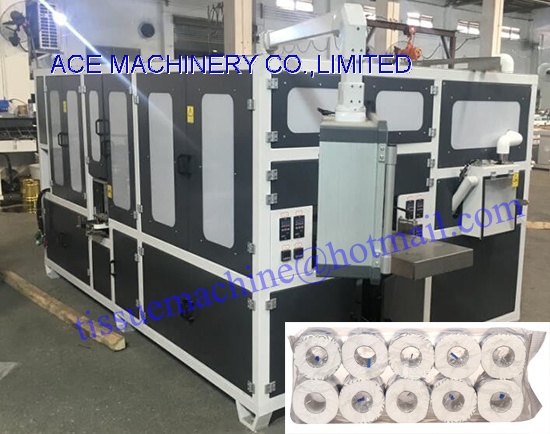

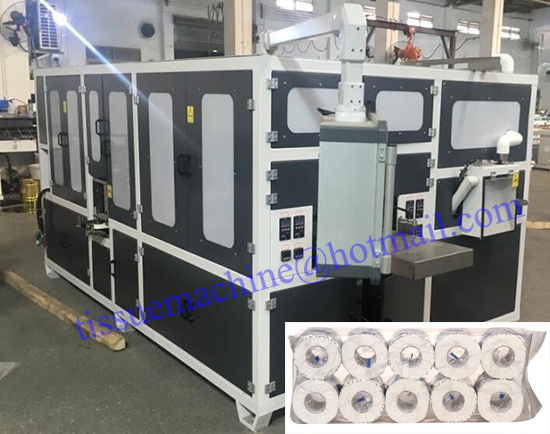

China 20 years’ experience professional manufacturer of 8-18 pack/min 4-12 roll/pack 100% Fully Automatic Multi Toilet Rolls Bundling Wrapper Machine Packing Paper Tissue—ACE Machinery


  • Product No.: ATW

Details

4-12 roll/pack 100% Fully Automatic Multi Toilet Rolls Bundling Wrapper Machine Packing Paper Tissue


Machine packing range:L(90-660mm)*W(180-220mm)*H(90-120mm)

Customer Packing size: 1*2 ;2*2 ;2*3; 2*4; 2*5; 2*6 rolls

Packing speed: 12-20bags/min

Parameters setting: MITSUBISHI touch screen

Control system:MITSUBISHI PLC

Servo motor:4sets servo motor(INVT)

Packing type:automatic bagging and sealing

Conveyor: 6 meters straight conveyor

Tissue tidy: automatic tidying system

Total power:15Kw,380V,50Hz

Air pressure:0.6Mpa(user supplied)

Packing material: OPP,CPP,PE hot sealing pre-made bag



Machine features:

1. adopt PLC and servo motors to drive the products feeding,overturn,counting,bag feeding,bag opening,bagging,sealing automatically.
2. bagging and sealing:adopt the mould negative pressure type bagging and sealing to keep the products shape nicely.
3. HIM:adopt MITSUBISHI touch screen to set the parameter to help to operate the machine easily.

4. Fault tracked and warmed:the fault will be showed on the touch screen and tracked the reason to make easy to solve the fault.

5. monitoring system:bags controlled,product checking to keep the machine won’t pack without products;and the checking system help to output the defective goods.In case that the bag can not open,machine will automatic stop.In case the bag is fault and can not open,the bag will output automatically.

6. packing speed: controlled by the frequency converter,easy adjustable.
7, adopt the single feeding channel,connect with the single packing machine easily.
