Lamination Printing N Z W M Multifold Paper Hand Towel Folding Machine Interfold with 2 3 4 5 6 folding types with Automatic High Speed Embossing by ACE MACHINERY CO., LIMITED China has lamination, printing, full embossing, edge embossing.


  • Product No.: NTM-240-6L

Details

Italy Design High Speed Automatic Z Fold Paper Towel Machine

Detailed description of Italy Design High Speed Automatic Z Fold Paper Towel Machine

Model

NTM-240-6L

Output 6 lines output.  Other capacity like 3lines, 4lines, up to 15lines are available.
Folding speed 600-1000 sheet/min/line x 6 lines, depending on paper quality and workers' operation.

Use

Production of interfold N fold hand towel.

Raw material

20-50gsm 2-ply or 1-ply virgin tissue or other tissue

Jumbo roll size

1440mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm.

Unfolded size

240±2mm x 240mm. Other size 210x210mm, 250x250mm etc. available. Please specify.

Folded size

  80±2mm x 240mm. One cutting size is adjustable

Folding Type

N fold/Interfold/vacuum fold

Control

Main motor controlled by inverter

Frequency speed control

Emergency stop if paper breaks

Vacuum pump for adsorption

Air pressure:0.5Mpa(buyer supply)

Folding unit

Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration.

Automatic counting unit

Embossing unit

1 set of steel-to-steel embossing unit. (Pattern provided by client)

Thickened Floor standing wallboard structure(Full steel plate)

Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design.

Laminating unit

Optional

Jumbo roll stand

1 back stand, controlled cushion cylinder

Web tension control

Automatic loading jumbo rolls.

Power

5KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 3-phase 220V 60Hz, or customized.

Machine Size

5000x2500x1900mm

Weight

6500KG

 Below are more details of our Italy Design High Speed Automatic Z Fold Paper Towel Machine

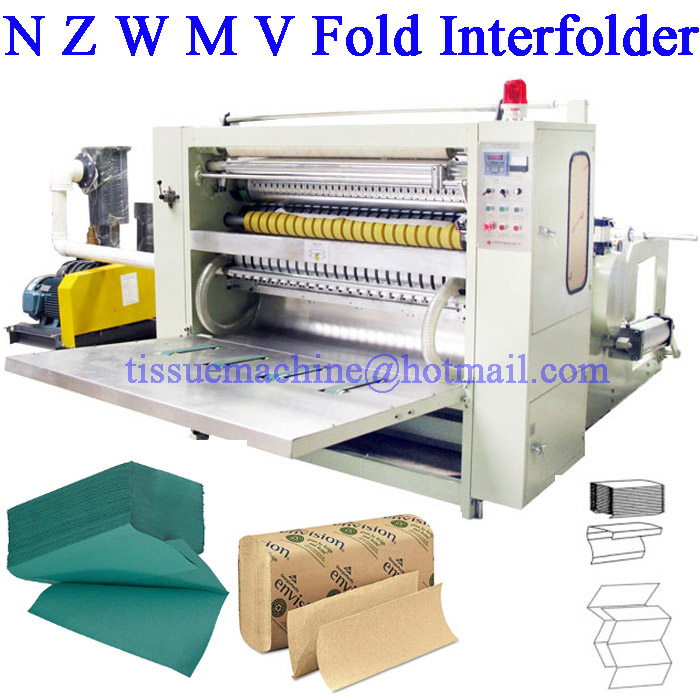

Overall view of Italy Design High Speed Automatic Z Fold Paper Towel Machine

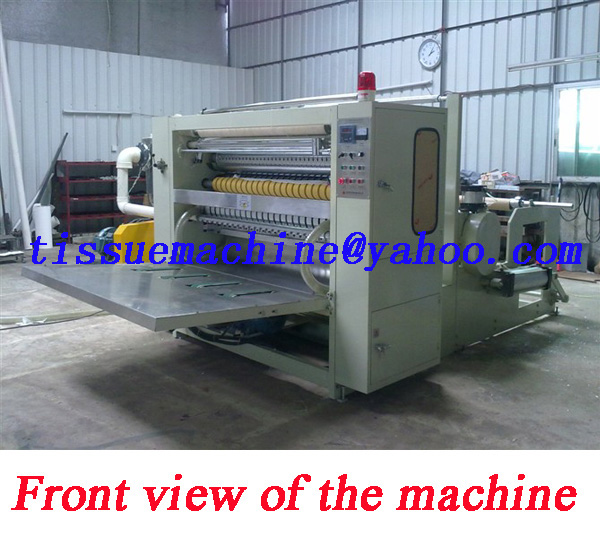

Overall view of  Italy Design High Speed Automatic Z Fold Paper Towel Machine.

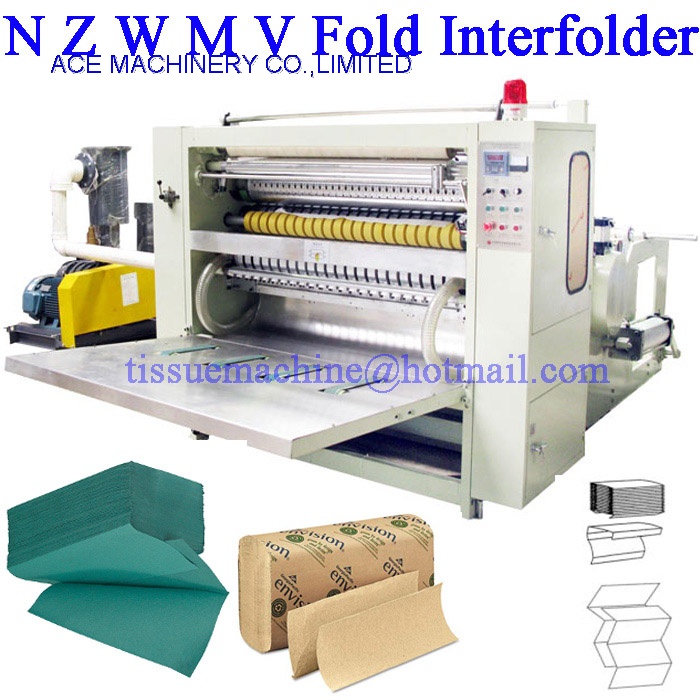

Overall view of  Italy Design High Speed Automatic Z Fold Paper Towel Machine.

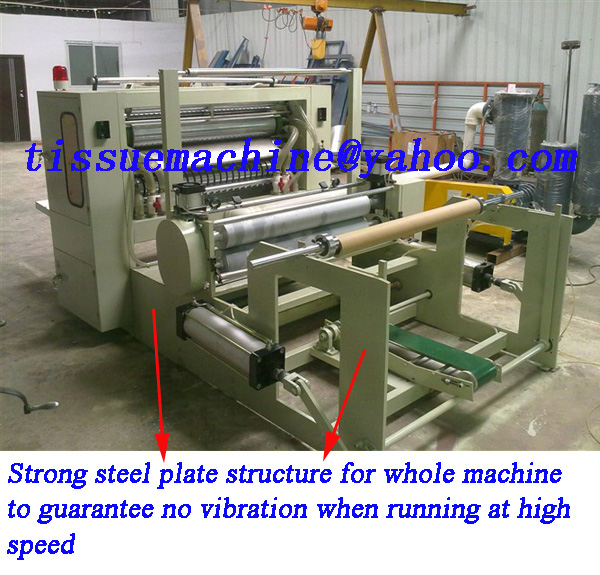

Our Italy Design High Speed Automatic Z Fold Paper Towel Machine is with complete steel plate structure.





Our Italy Design High Speed Automatic Z Fold Paper Towel Machine is with steel to steel embossing unit and Taiwan Vacuum Pump.








Perfect folding of our Italy Design High Speed Automatic Z Fold Paper Towel Machine. The jumbo roll width is 1440mm for 6 lines output. The folding is still perfect while running at stable speed of 600-1000 sheet/min/line.



Our Italy Design High Speed Automatic Z Fold Paper Towel Machine is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.





Our Italy Design High Speed Automatic Z Fold Paper Towel Machine can work with Brown Towels.





Finished Brown Towels produced by our Italy Design High Speed Automatic Z Fold Paper Towel Machin.

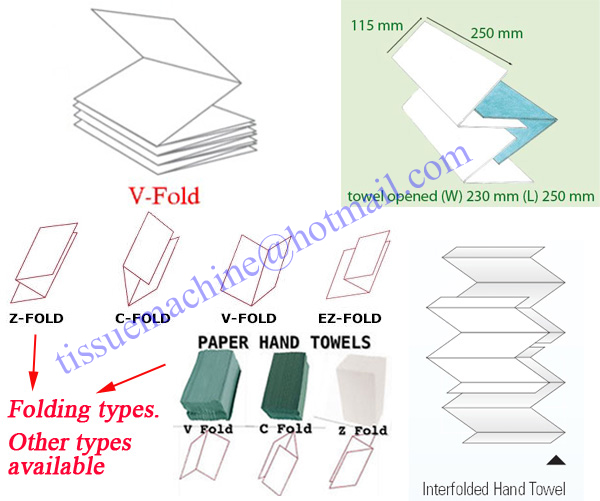

Folding types of our Italy Design High Speed Automatic Z Fold Paper Towel Machine can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.

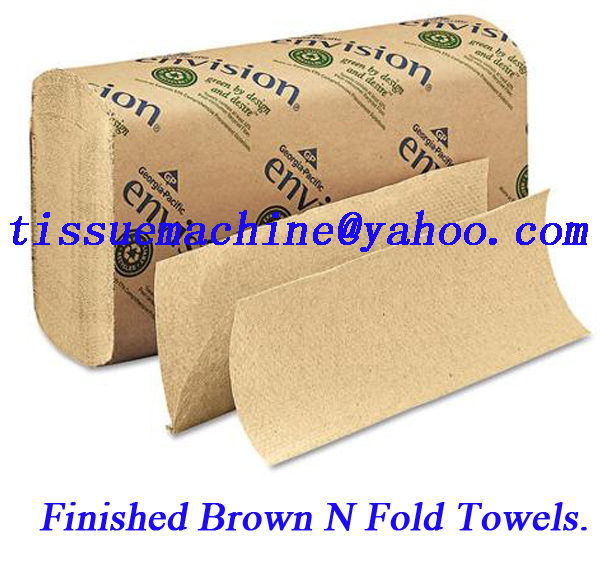

N Fold BROWN towels made by our Italy Design High Speed Automatic Z Fold Paper Towel Machine.



 Our Italy Design High Speed Automatic Z Fold Paper Towel Machine can also convert Green Towels.





Green Fold towels made by our Italy Design High Speed Automatic Z Fold Paper Towel Machine.







Laminated towels with colored glue made by our Italy Design High Speed Automatic Z Fold Paper Towel Machine.







We have Fully-auto Band Saw to connect ur Italy Design High Speed Automatic Z Fold Paper Towel Machine.
