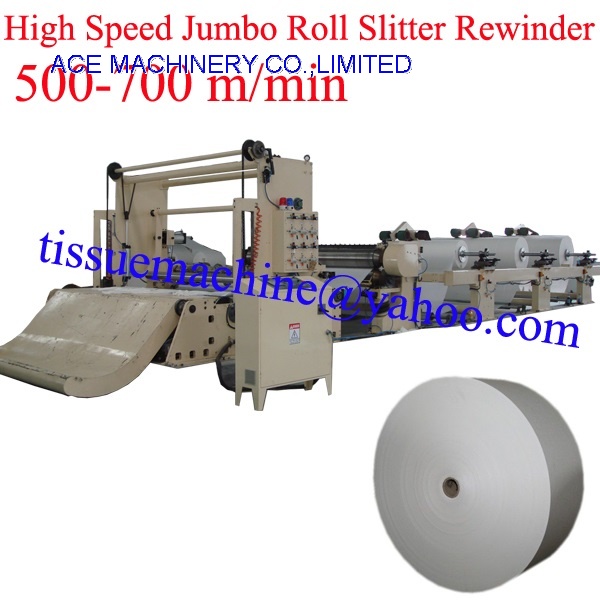

700 m/min High Speed Jumbo Paper Roll Slitter Rewinder Machine Automatic Slitting Rewinder made by ACE MACHINERY CO.,LIMITED


  • Product No.: HJSR

Details

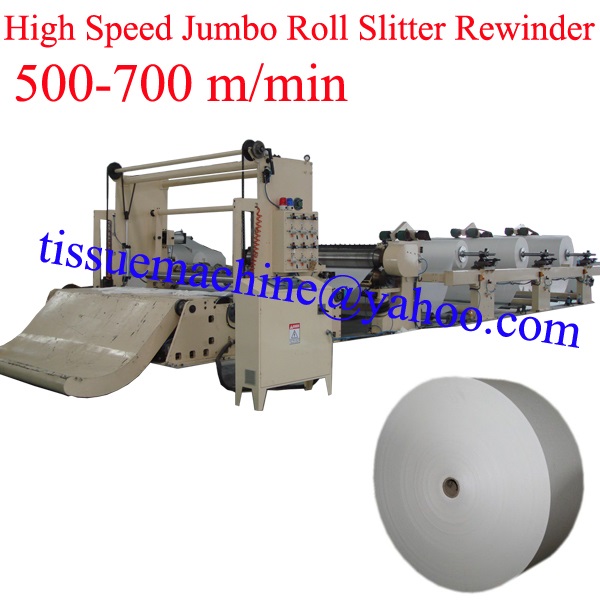

HJSR 700 m/min High Speed Jumbo Paper Roll Slitter Rewinder Machine Automatic Slitting Rewinding

Technical parameters of HJSR 700 m/min High Speed Jumbo Paper Roll Slitter Rewinder Machine Automatic Slitting Rewinding.

Machine model

1092

1575

2000

2200

2400

2600

2800

Other sizes to be specified.

Jumbo roll width(mm)

1300

1750

1950

2150

2350

2550

2750

Jumbo roll diameter

Φ1200mm.

Inner core diameter

3”(76mm)

Raw Material

13-22 g/m2 for 2 plies, 18-40 g/m2 for single ply Tissue/Airlaid/Nonwoven.

Other g/m2 to be customized.

Finished Roll Diameter

Adjustable,  Max. Φ1200mm   Other sizes to be customized.

Finished Roll Width

Adjustable,  Minimum 150mm.

Speed

500-700m/min, depending on paper quality, gsm and worker’s operation.

Rewind Section

Pneumatic expanding shaft rewinding.

With edge suction system.

Slitting system

Pneumatic slitter control

Unwinder Section

2 unwinders.

Automatic loading jumbo roll pneumatically.

With wide flat belt driven.

Discharge system

Pneumatic discharge.

Tension system

Manually adjusted by cone pulley or speed controller.

Control system

PLC control

LCD display

JOG function

Emergency stop function

Auto stop if paper breaks.

Optical sensor detecting

Installed Power

4.5-100KW for main motor, 3phase 380V 50hz or customized.

Air Pressure

0.5Mpa(prepared by the customer).

Optional Items

Calendaring Section

Steel to steel or steel to rubber.

Other requirements to be customized.
