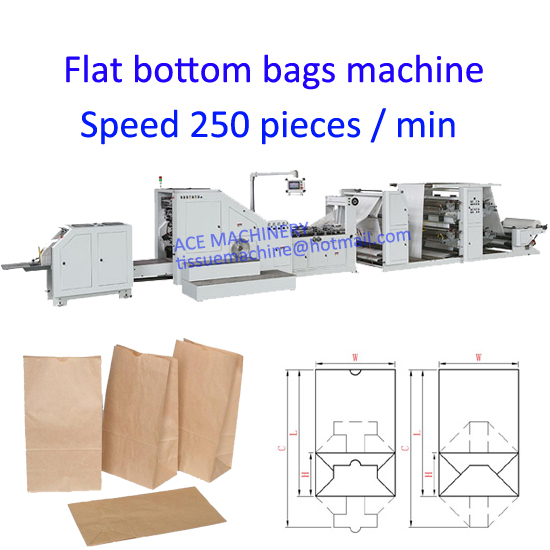

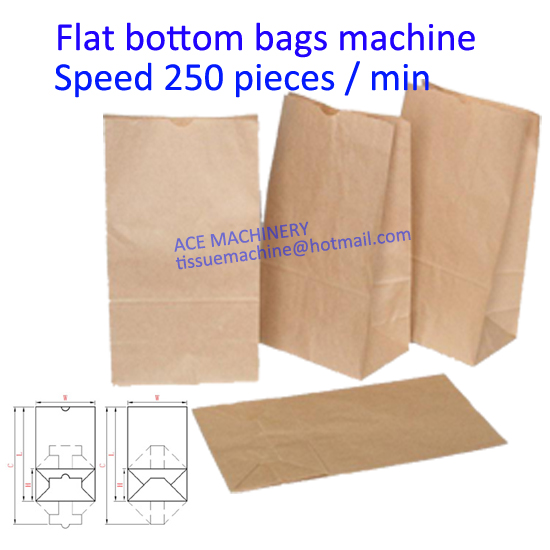

Flat Bottom Food Paper Bag Making Machine

Flat Bottom Food Paper Bag Making Machine with printing

Technical Parameter：

Type: PBM-F

Bag Width（W）: 80-200 mm

Bottom Size（H）: 50-105 mm

Bag tube length（C）: 190-370 mm

Max.Speed: 260 pcs/min

Paper Thickness: 45-140 gsm

Paper Roll Width: 280-630 mm

Max.Roll diameter: 1100 mm

Reel inner diameter: 76 mm

Total Power: 7.5 Kw

Weight of Machine: 3500 kg

Overall Dimension(LxWxH): 6600×1400×1500 mm
